HNY Badger II 11"

Carry heavy payloads or gimbal rigs without sacrificing on performance

MSRP: 650 $

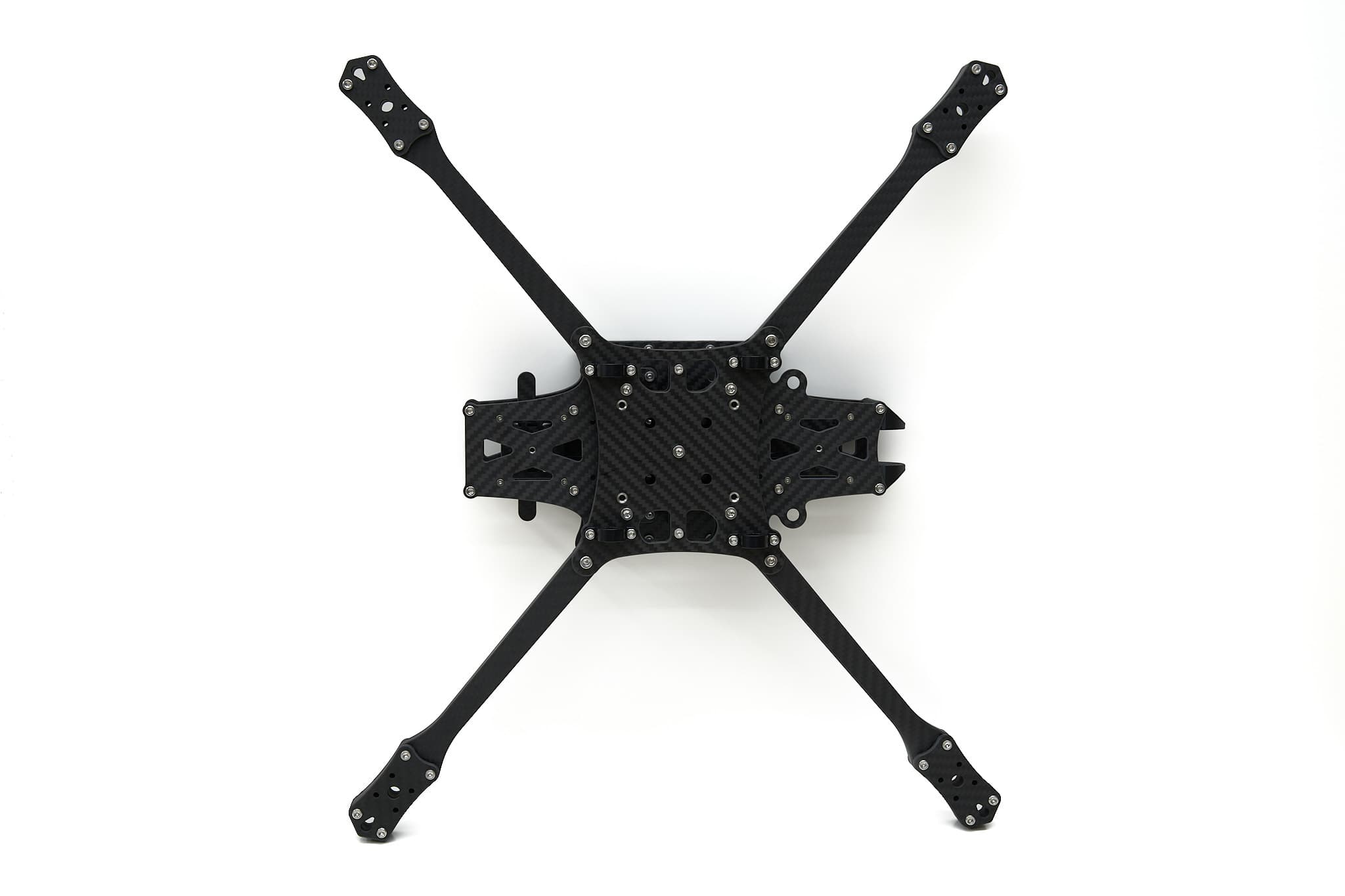

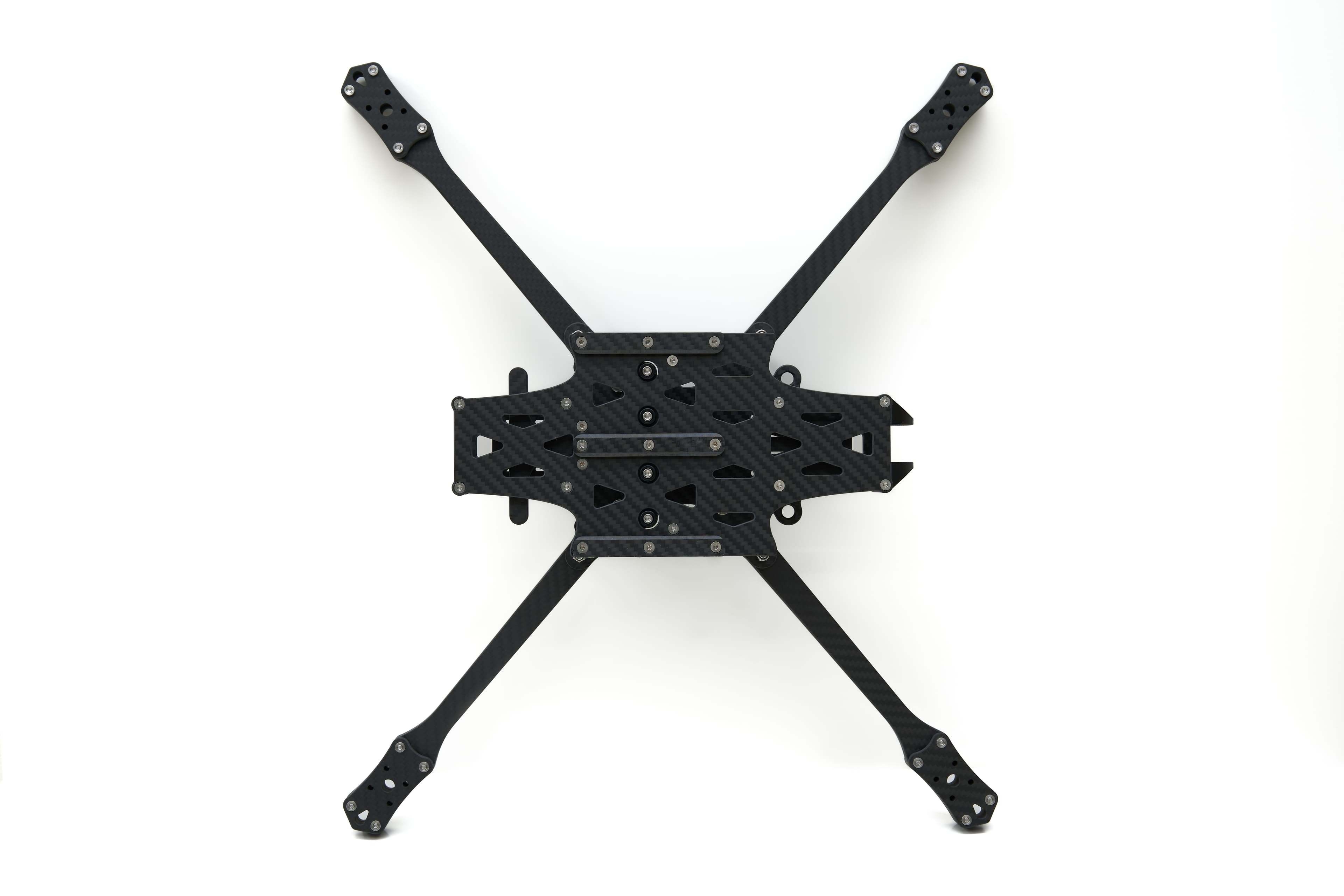

HNY Badger II 11"

The HNY Badger II is not only the first release in the HNY Brand (Pronounced: *hʌni,* like **“honey”) but also the successor to the popular Honeybadger X8 Frame. Bringing you top-notch performance, combined with superb build experience and versatility.

HNY Badger II 11 inchHNY Badger II 11 inch

Performance

The 11” Variant of the HNY Badger II delivers ultimate power and acceleration without compromising on rigidity, performance or ease of use. It is the perfect companion for large Cinema Cameras, Gimbal Setups or custom payloads.

12S Dual Battery Quick Release

Dual Quick ReleaseDual Quick Release

HNY Badger II 11” features a Dual Battery Quick Release System. The System allows to individually mount and release two single 6s batteries, allowing you to use the same batteries like the 6s Version.

We would like to thank Sam Sanford https://strawhataerial.com for granting us permission to utilize his battery quick-release system, originally designed for his LaMamba frame. This means that if you already own a LaMamba and wish to use the same batteries on our 9” or 11” frames, you can do so. We decided to use custom machined CNC Parts and a two-hand operated release mechanism to ensure longevity and endurance. All your existing La Mamba quick release plates will still work with HNY Badger II out of the box.

Camera Mount

Camera MountCamera Mount

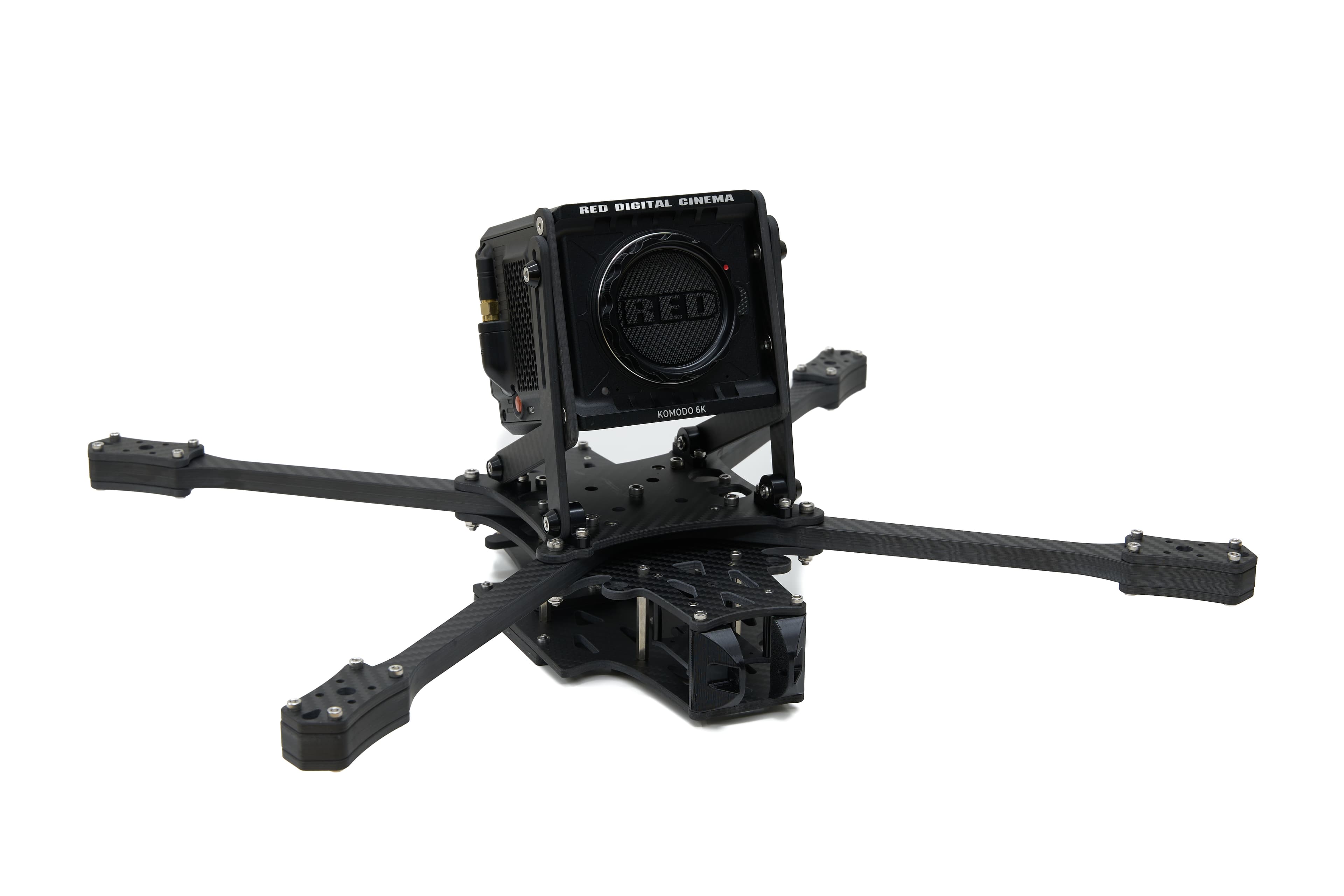

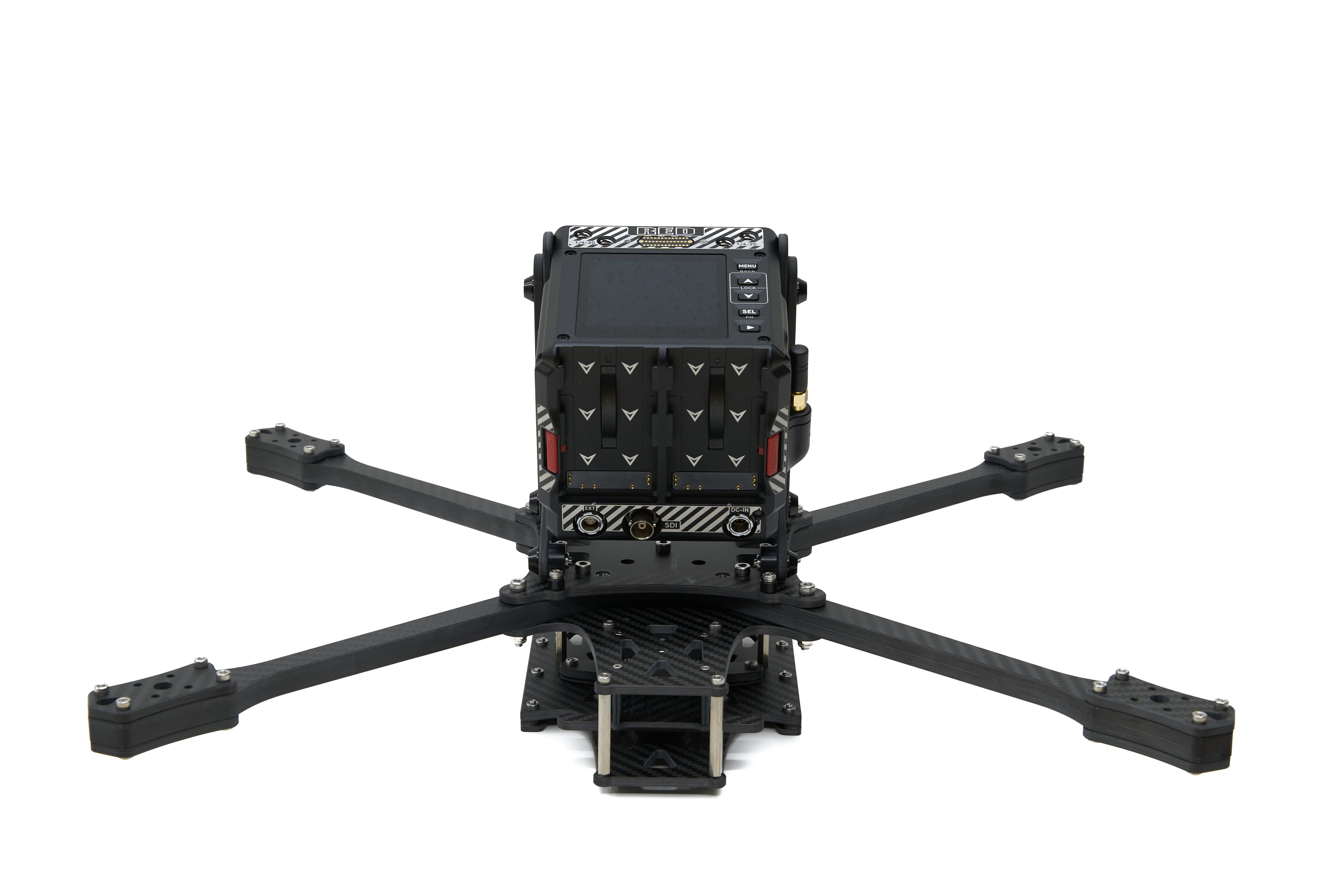

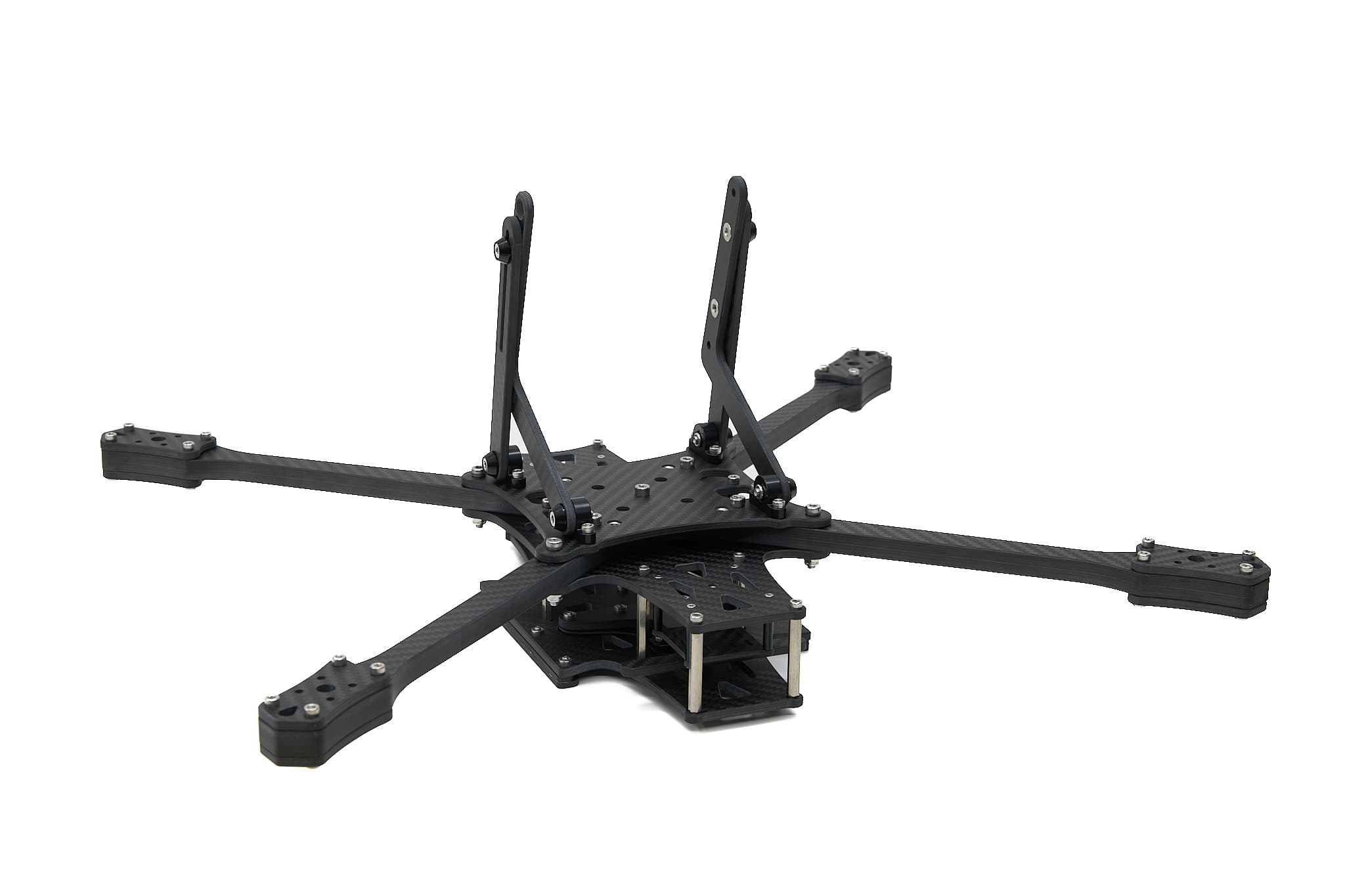

The integrated Mount for RED Komodo and Komodo X and our custom Mount for the Freefly Ember allow for direct hard-mounting using custom machined CNC parts.

For usage with universal Payloads the HNY Badger II supports the popular DAC Mount mounting Pattern allowing Pilots to use various cameras and payloads. Press nuts embedded in the Top Plate allow for quick and easy mounting.

DJI RS Gimbal Mount

Gimbal MountGimbal Mount

Our first party Gimbal mounting solution utilises embedded press nuts in the top plate of the frame as well as the internal M3 Threads in the Tilta Mounting Plate for RS Gimbals to ensure secure mounting.

Enclosed Design

Featuring an enclosed design, the HNY Badger II protects all sensitive electronics, making handling easier and improving longevity on set. All 3D printed Cover Designs are publicly accessible and adjustable for custom needs and community add-ons.

Key Features

  • 12S Dual Battery Quick Release System
  • First party gimbal mounting solution
  • Constructed with ALU CNC, carbon, and steel bolts, resulting in high longevity.
  • 899g Dry weight incl. Cam Mount
  • High Prop Disk Area
  • Optimised Performance
  • Integrated Camera Mount
  • Universal Payload compatibility
  • DAC Mount compatibility
  • Battery Quick Release with La Mamba
  • Set-Optimised enclosed design

Recommended Setup

  • Flycolor X-CROSS HV 80A ESC (5-12S) V3
  • 30x30 12S PDB
  • RADIX 2 HD FC
  • DJI O3 Air Unit
  • 2x Tattu 4500mah 6s R-Line (XT90 Modded) , connected in series (12s resulting)
  • RED Komodo Kamera

Specs

  • Frame only weight: 899g
  • Frame with recommended setup and gimbal mount (no payload, no battery): 3168g

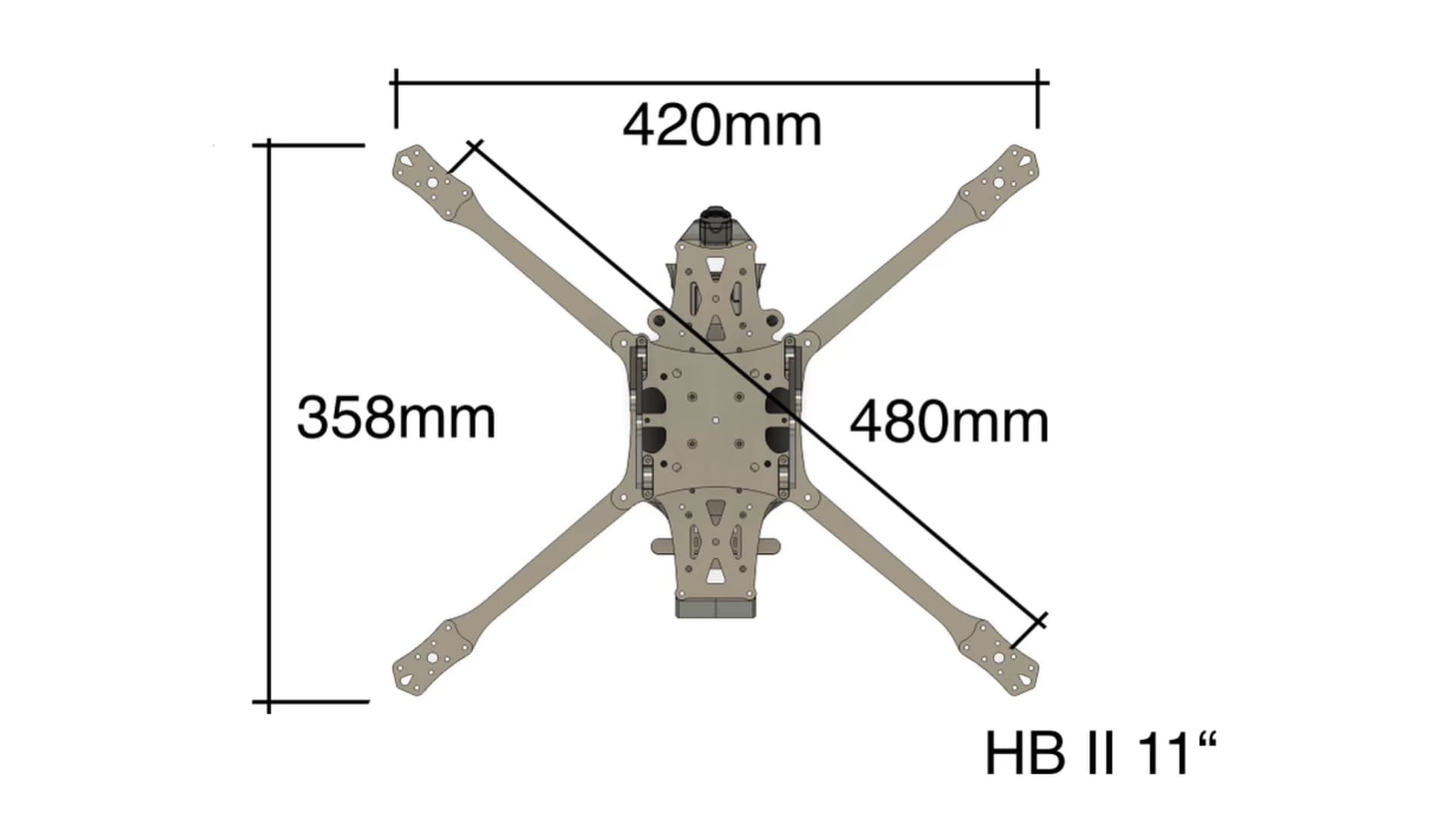

Frame DimensionsFrame Dimensions

Detail Pictures
